DY-LW Furnace Temperature Tracker

DY-LW Furnace Temperature Tracker

◇ Product Introduction ◇ Product Features◇ Technical Indicator

[Product Introduction]

The DY-LW furnace temperature tracker's superior insulation performance enables the test system to perform temperature mapping in harsh thermal environments.

Through the heat treatment furnace together with the products, the temperature of the heat treatment furnace and products can be monitored throughout the process, and valuable data can be obtained without couple test. The curve analysis report formed can provide the real temperature state of the products and furnaces to the engineers immediately, which will tell you how to optimize the operation.

By balancing temperature, time and heating rate, you can improve line speed and product quality to achieve efficient production.

DY - LW furnace temperature tracker is a high precision, high stability test records of furnace temperature products, filled the domestic blank in the field of temperature acquisition, the system also equipped with a powerful software analysis system, the collected temperature data save, PC software analysis system function parameters such as temperature and length, time, product features, analysis of synchronous processing.

Scope of application

Coating of the lacquer that bake furnace temperature tester, temperature tracker, non-stick coating for steel heat treatment furnace temperature tracker, wheel hub heat treatment furnace temperature tracker, SMT temperature tester, brazing furnace temperature tracker, car coating temperature tracker, food baking furnace temperature tracker, ceramic firing furnace temperature tracker, enamel furnace temperature tracker, carburizing furnace, heat treatment, the spring heat treatment, bearing heat treatment, etc.

DY-LW Furnace Temperature Tracker

[Technical indicators]

ModelDY-LWOriginalTaiwanInsulation box originshanDong
Number of channels 4-16 ChannelSensorType K ThermocouplePrecision+-0.5
Hours of use -100~1300℃ range, 1~15 hours customizedResolution0.1
Internal Storage Each channel can record and store 16,000 data
Sample rate1S, 2S, 3S, 4S, 5S, 6S, 10S, 20S, 30S, 1min and so on can be selected by the user.
System RequirementsWindows 98, 2000, XP, etc., can print the temperature curve through the computer.
MR ConfiguratorContinuous testing, data download once USB port, suitable for all computers
Standard voltage calibration, reliable accuracy
All kinds of indicator lights, clear instrument status
When data is downloaded, the device charges itself
Analysis SoftwareEach curve can be optionally displayed or not the heating rate between any two temperatures can be calculated.
You can calculate the time above certain four temperatures;
You can calculate the peak temperature;
You can compare data from 2-5 tests.
Insulation box sizeCustomize according to the actual situation

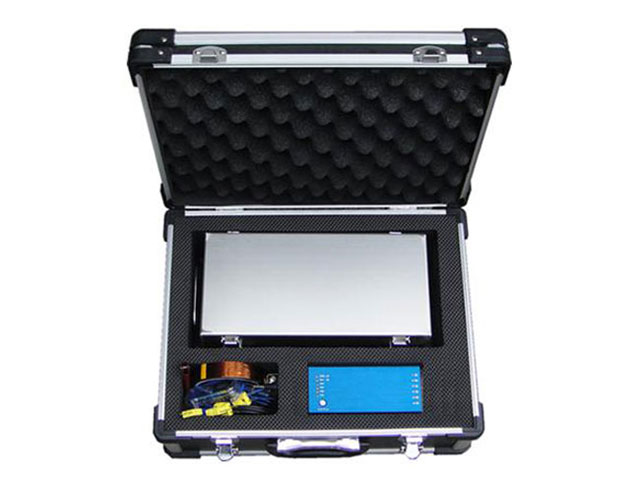

Standard Configuration Temperature recorder, temperature probe, communication line, data processing and analysis software, incubator, operation manual

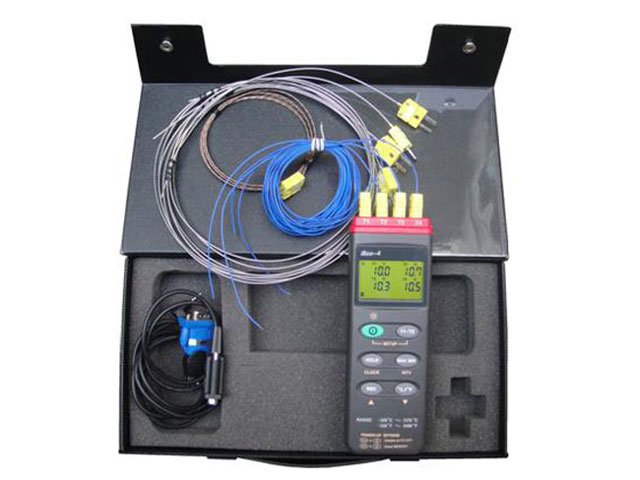

Accessories

NO.NameQtyNO.NameQty
1Instrument packing case1PCS7Waterproof strip 2 meters1PCS
2Thermometer  machine1PCS8high temperature tape1PCS
3Insulated Box1PCS9Software USB flash disk1PCS
4Operating Manual1PCS

5Data cable and charger1PCS

6Thermocouple Plug12PCS


Technical indicators

ModelDY-LW –TM104K-TM16KPower Consumption≤35mA
Test Channel CH10PowerLi-ion 850mA
Sampling Rate10sDimension of thermometer138mm*61mm*20mm
Measurement Accuracy±1℃Insulation Box Size48 x 37x 32cm
Resolution0.1℃Working VoltageDC3.7V~DC4.2V
Core Temperature≤85℃Continuous TestStore up to 4 times at a time
Starting ModeButton start, delay start, temperature startMemory Capacity8M 246,000 data point
