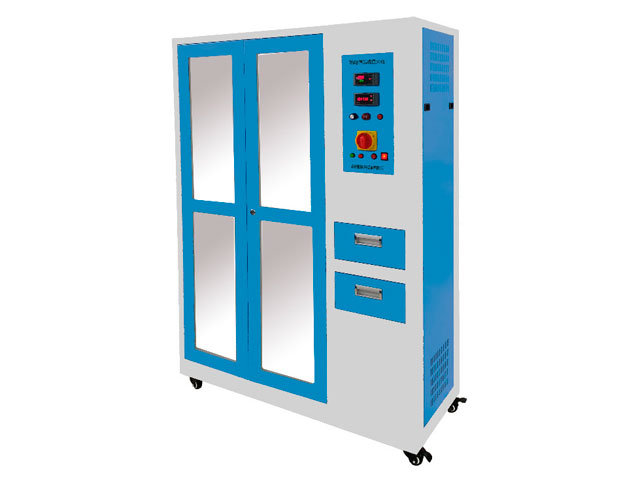

DY-THL1000 Thermocouple Cleaning Annealing Plant

◇ Product Introduction ◇ Product Features◇ Technical Indicator

[Product Introduction]

The DY-THL1000 thermocouple cleaning and annealing device is designed according to the verification regulations of JJG75-95, JJGL67-1995, JJGL41-2000, JJG668-1997. It can clean and anneal the standard and working precious metal thermocouple before verification.

The thermocouple wire is hung on the special clamp, the working current is adjusted after power on, and the cleaning and annealing is carried out in accordance with the time specified in the verification regulations.

[Technical indicators]

 working voltage: AC 220v +10, 50HZ

 voltage regulating range: 0~250V

 working current: 0~20A

 high-precision digital display voltage current meter (0.5), can be intuitive accurate display annealing working current and voltage.

 current display resolution: 0.1A

 voltage display resolution: 0.1V

 annealing: two

 knob located on the front panel to adjust current, and adopt more ring potentiometer type adjustment design, to ensure the current regulation of visual and accuracy.

 annealing working circuit with high precision time relay, annealing time can be set according to requirements of the discipline, also can be set arbitrary in 0-999 minutes, and automatic countdown of setting time, and then automatically cut off the annealing current circuit, the set time limit regulation accuracy 1 minute to stop immediately without electricity (time).

 package unit is equipped with a leakage protection function and the open circuit and short circuit protection function

 overall structure USES the humanized design, make annealing and after annealing treatment work more easy and convenient.

 safety grounding mark clear, the cabinet put oneself in another's position inside labeled with insulation materials, increase the security during the work.
